Galvanized Steel Vineyard Post Making Machine

  • Galvanized Steel Vineyard Post Making Machine
  • Galvanized Steel Vineyard Post Making Machine
  • Galvanized Steel Vineyard Post Making Machine
  • Galvanized Steel Vineyard Post Making Machine

Galvanized Steel Vineyard Post Making Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Standard Package or According To Customer's Requirement
    Productivity: 30 Sets Per Month
    Brand: TG
    Transportation: Ocean
    Place of Origin: Hebei Province, China
    Supply Ability: 30 Sets Per Month
    Certificate: CE, ISO, SGS
    HS Code: 84552210
    Port: TianJin

Basic Info

Model No.: TG-0013

Product Description

Our company can supply complete production lines and Vineyard Post Making Machine according to your requirement. We supply many different sizes of Vineyard Grape Stakes Machine with our auxiliary equipment. We have gained a good evaluation from users because of advanced technology, perfect quality and after-sale service.The whole Vineyard Post Roll Forming Machine adopts cold bending forming technology, cold stamping technology, automatic stacking technology and industrial automation control to realize fully automated production.

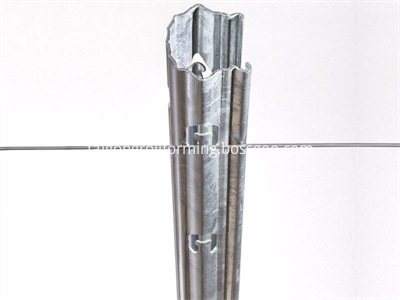

1. Vineyard Post Violin Making Machine Profile Drawing and Products for Reference

Hydraulic Punching Vineyard Post Machine Hydraulic Punching Vineyard Post Machines


2. Working Flow of Fence Post Forming Machine

Decoiler----feeding with guide---Punching----Roll forming----Cutting----Products collecting

Metal Fence Post Roll Forming Machine


Fence Post Cold Roll Forming Machine

3. Machine Details:

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel

2. Working Speed: 12-15 meters / min
3. Forming Steps: 19 stations, drive by gear boxes
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 22KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
11. The whole machine is controlled by industry computer-PLC
12. PLC--Panasonic, Japan English and Chinese Language
13. Touch Screen--Panasonic Japan
14. Encoder--Omron, Japan


4. Main Components

S.N Equipment name Quantity
1

hydraulic De-coiler
1set
2

Leveling device 200mm
1set
3 Servo feeding device 200mm 1set
4 Main roll forming machine 1set
5

Cutting holder
1set
6 Hydraulic station 1set
7 Control system 1set
8 Cutting&Punching die 1set


5. Equipment for Reference:

Vineyard Post Making MachinesFence Post Roll Forming Machine


6. Scene application

Vineyard Post Making MachineHydraulic Punching Vineyard Post Machine


7. Customer

Fence Post Forming Machine


8. Machine Loading

Metal Fence Post Roll Forming Machine



9. Payment terms and after-sale service:

1) FOB Tianjin

2) Payment: 30% T/T deposit, and pay the balance before shipping.

3) Delivery time: 45-50 working days.

4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.

5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.

6) Installation and training:

1. If buyers visit our factory and check the Fence Post Cold Roll Forming Machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.

2. Without visiting, we will send you user manual or video to teach you to install and operate Metal Fence Post Roll Forming Machine

3. COST OF INSTALLATION:

The buyer should pay the installation charges (USD 100 one man one day). To the seller`s appointed account by T/T before the seller`s technicians go to the buyer`s factory. The buyer pays the seller`s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
